Motorized Lubrication Units / Automatic Lubrication Pumps (Single phase / Three phase)


Techno Drop is Manufacturing and Supplying Motorized lubrication units. These motorized units are mini hydraulic power packs in which a rotary positive displacement pump that hold low discharge is driven by an electric motor along with reservoir, lubricant filler, suction strainer, pressure relief vavle, bleed valve etc. and are suitable for single shot automatic oil lubrication. Motorized lubrication units are available in single phase and Three phase.

These Motorized Lubrication Units are to be run intermittently with metering cartridges for oil distribution. These are available in different models. The lubrication can be done automatically with the help of Electronic lubrication timer or controller. The company also develops the special type of motorized lubrication systems as per customer's requirement.




Model :- TDELU-2700-PS FS

Reservoir Cap : 2.7Liter (transparent)
Motor :0.12kw ,415 VAC , 1350 RPM
Discharge : 1Lpm,
Pr. Setting : 12-15 kg / cm²
with pressure switch
With float switch (vertical / horizontal )

Optional : Electronic lubrication controller




Model :- TDLU-03-PS FS

Reservoir Cap : 3 Liter (Mild Steel)
Motor :0.12kw/0.18kw ,415 VAC , 1350 RPM
Discharge : 1Lpm,
Pr. Setting : 12-15 kg / cm²
with pressure switch
With float switch (vertical / horizontal )

Optional : Electronic lubrication controller

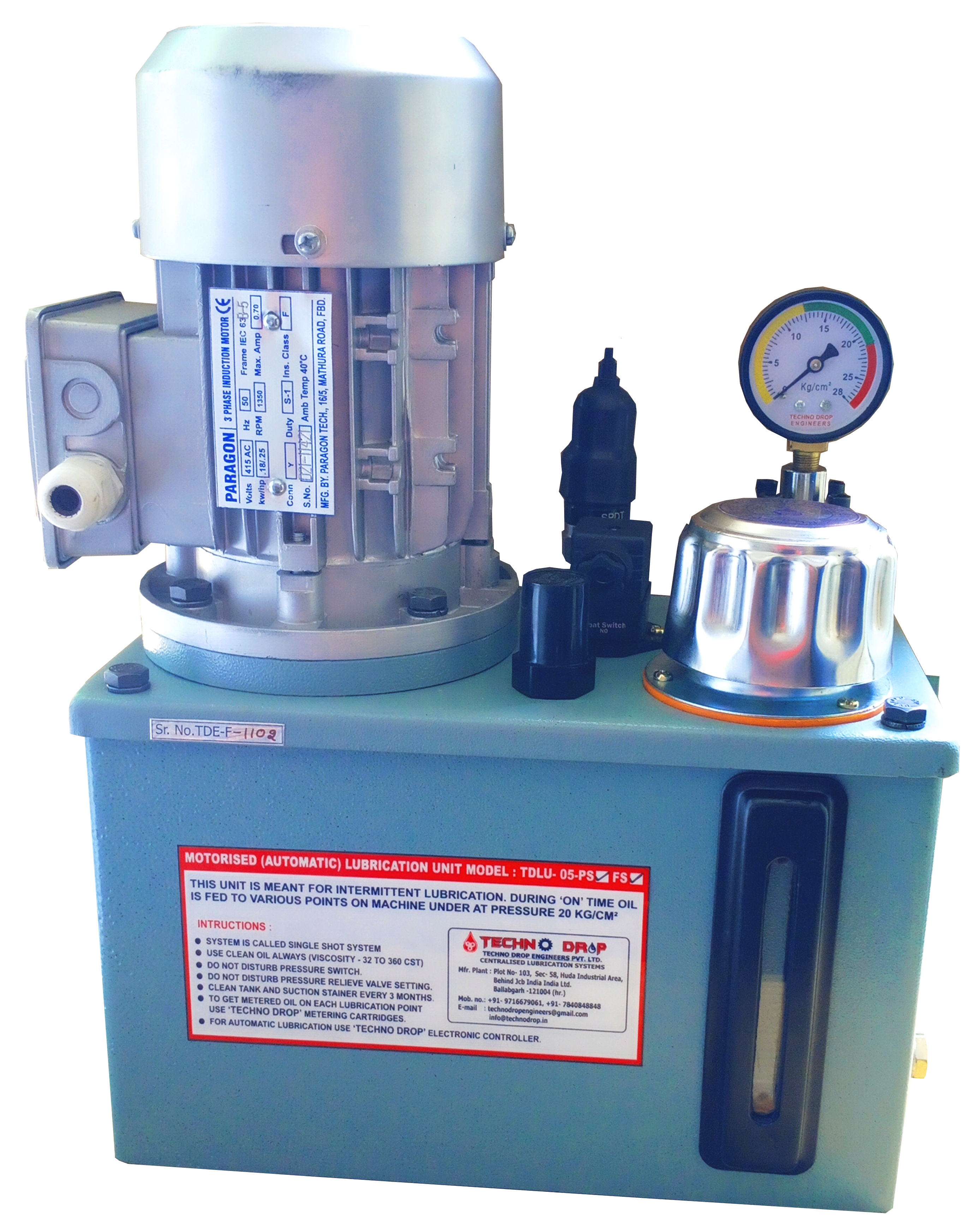

Model :- TDLU-05-PS FS

Reservoir Cap : 5Liter,
Motor :0.18kw(0.25HP) ,415 VAC,1440 RPM
Discharge : 3Lpm,
Pr. Setting : 12-15 kg / cm²
with pressure switch
with float switch (vertical / horizontal )

Optional : Electronic lubrication controller




Model :- TDLU-08-PS FS

Reservoir Cap : 8 Liter (Mild Steel)
Motor :0.18kw ,415 VAC , 1440 RPM
Discharge : 4 Lpm,
Pr. Setting : 18 kg / cm²
with pressure switch
With float switch (vertical / horizontal )

with Return Line Cum Filteration Port (optional)
Optional : Electronic lubrication controller




Model :- TDLU-20-PS FS RL

Reservoir Cap : 20 Liter (Mild Steel)
Motor :0.36kw (0.50 HP) ,415 VAC , 1440 RPM
Discharge : 6 Lpm,
Pr. Setting : 18 kg / cm²
with pressure switch
With float switch (vertical / horizontal )

with Return Line Cum Filteration Port (optional)
Optional : Electronic lubrication controller




Motorized Lubrication Units

TDOCS-Series : Reservoir Cap : 30 / 50 /100 Liter,
Motor :0.55kw(0.5HP) or 0.75kw(1.0 HP) ,415 VAC,1440 RPM
Discharge : 9Lpm /12Lpm /16Lpm,
Pr. Setting : 2-10 kg / cm²
with pressure switch
with float switch (vertical / horizontal )
with Return Line Cum Filteration Port
