Electronic Lubrication Timer / Controller
Techno Drop manufacture high quality electronic timers and controllers. And specially designed for lubrication systems with variable time ranges.
Few models are as under :
Digital Lubrication Controller
Manually operated grease pump with double outlet, A & B line can be changed by lever as per requirement

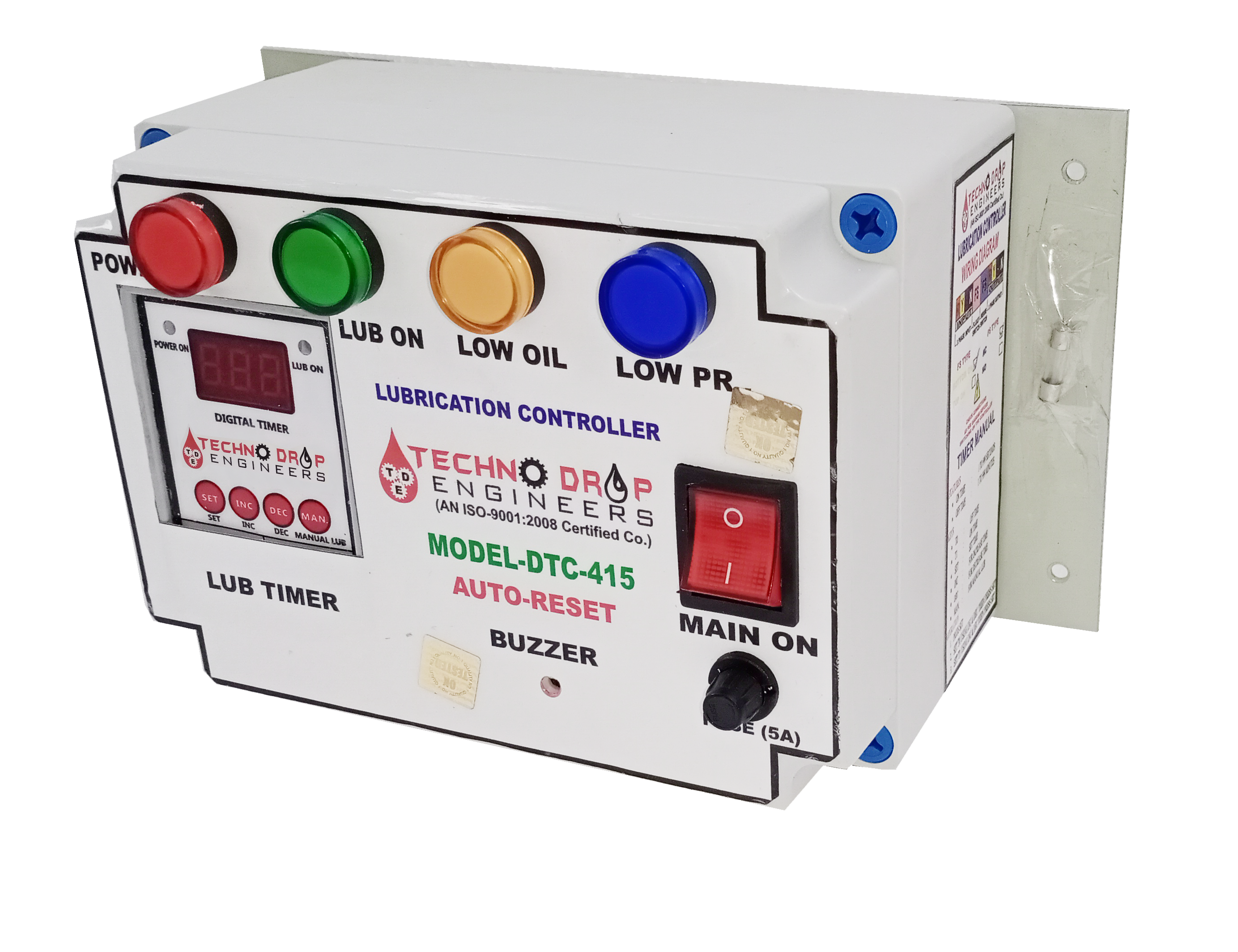

TDLC-415 PS FS
Wall Mount Type, Digital Controller, having ON TIME 99 Sec. (adjustable), OFF TIME 99 Min/Hour.(adjustable) with the help of Buttons Given on the font of timer, the Digital Display makes possible to read out the time over with the resolution of set time paramets , this controller have the feature of Interocking & Audio Alarm on Oil Low Level Fault & Low Pressure fault in Auto-Lubrication System.
TDALC-415-PS FS
Wall Mount Type,Analog Controller, ON TIME 5 sec. (fixed), OFF TIME 1, 2, 4, 8, 16, 32, 64,128 min. (adjustable) with the help for Rotary Switch. LED's bar makes possible to read out the time over with the resolution of 1 minute.this controller have the feature of Interocking & Audio Alarm on Oil Low Level Fault & Low Pressure fault in Auto-Lubrication System.
TDLEDC-415 PS FS
Wall Mount Type, Semi-Analog Controller, ON TIME 5 sec. (fixed) and OFF TIME 1, 2, 4, 8, 16, 32, 64,128 min. (Adjustable) Push Button Switch for manual Lubrication. this timer comes with Push Button Feature , you can sent the Timer by Pushing the button to your desired fixed inbuilt time feature.this controller have the feature of Interocking & Audio Alarm on Oil Low Level Fault & Low Pressure fault in Auto-Lubrication System.

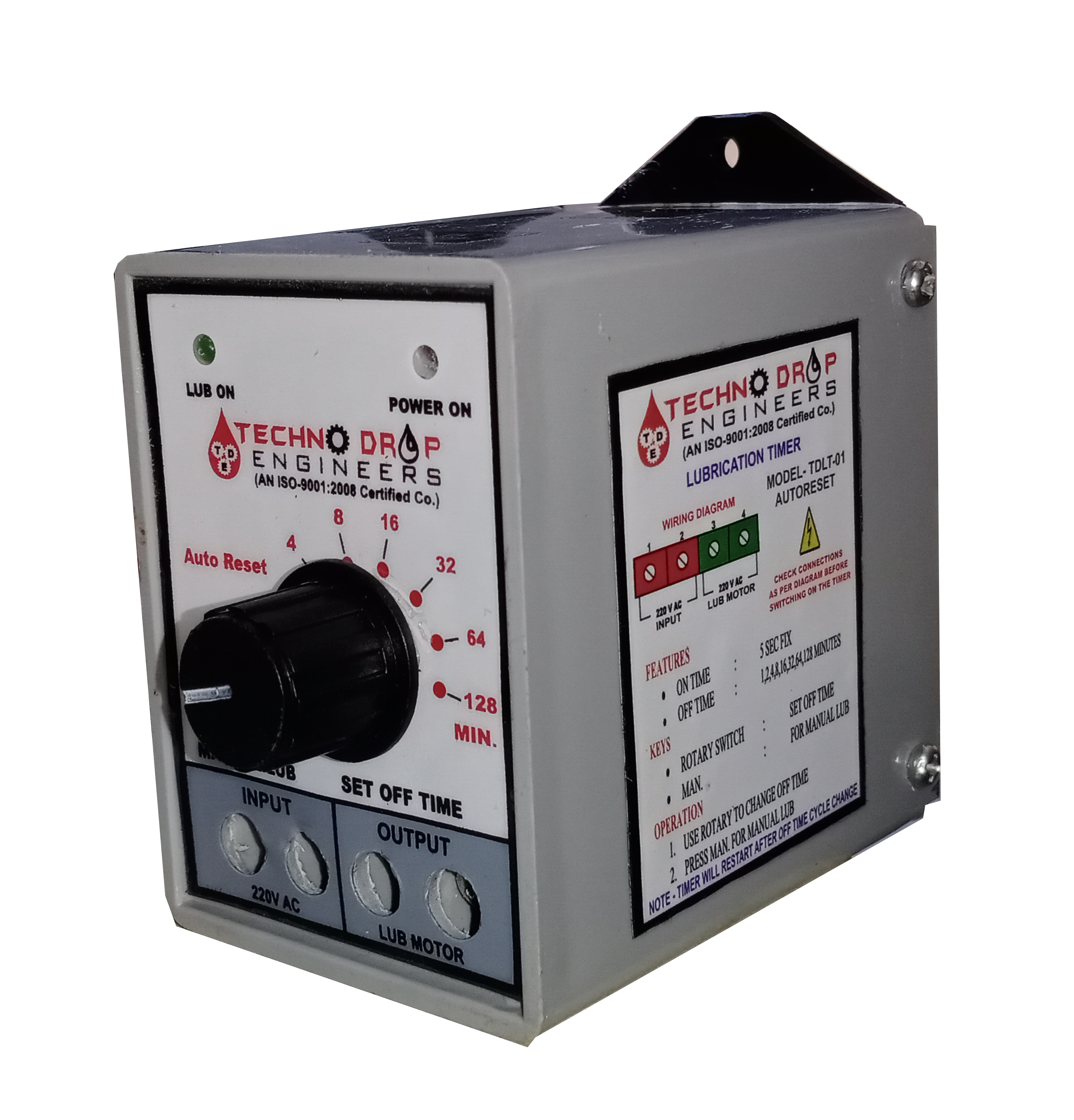

Electronic Lubrication Timer
Electronic Lubrication timer with ON TIME 5 sec. (fixed) OFF TIME 1, 2, 4, 8, 16, 32, 64 & 128 min. (adjustable) with the help of Rotary Switch. A 8 LED's bar makes possible to read out the time over with the rate of 1 minute.
Input : 220V AC,/110 VAC
Indication : Main On, Lub. On
Digital Programmabel Controller 24/12 VOLT DC
Digital Programmabel Controller 24/12 VOLT DC
these Programnmable Digital Timer Controllers are used to operate 12/24 Volt DC Lubrication Pumps , they have the Feature for set time value 9999 Sec/Minute/Hour On-time to 9999 Sec/Min/Hour Off time , this have resume time memory function, with capability of monitoring the Greae/Oil Low Level & Low Pressure Faults.they Support to RTC Module with Password Protection.
Model 1 : LOC-2412
Input : 24/12- VOlT-DC
Indication : Pump On, Low Level Fault ,Low Pressure Fault
Model 2 : DLC-2412
Input : 24/12- VOlT-DC
Indication : Pump On, Low Level Fault
