Grease Lubrication System
Grease lubrication system includes manual grease pumps, pneumatic grease pumps and radial lubricator are designed principally to make the work environment safer for maintenance personnel by simplifying the process of accessing remote grease points, especially in confined spaces, when equipment is in operation. However, the primary benefit is derived from the continuous application of small amounts of grease resulting in improved equipment life, due to the uniform supply of grease. These systems are efficient in operation, high in performance and easy to operate. These products have been specially designed and developed for greasing of different parts of machineries. These products are available at economical prices.
The design parameters of centralized grease systems include the volume and frequency of grease required at each point, the number of points requiring grease, operating conditions, pump pressure, line diameter and distance to the grease points. When used and maintained properly, centralized grease systems can help enhance technician productivity and simplify equipment maintenance processes.

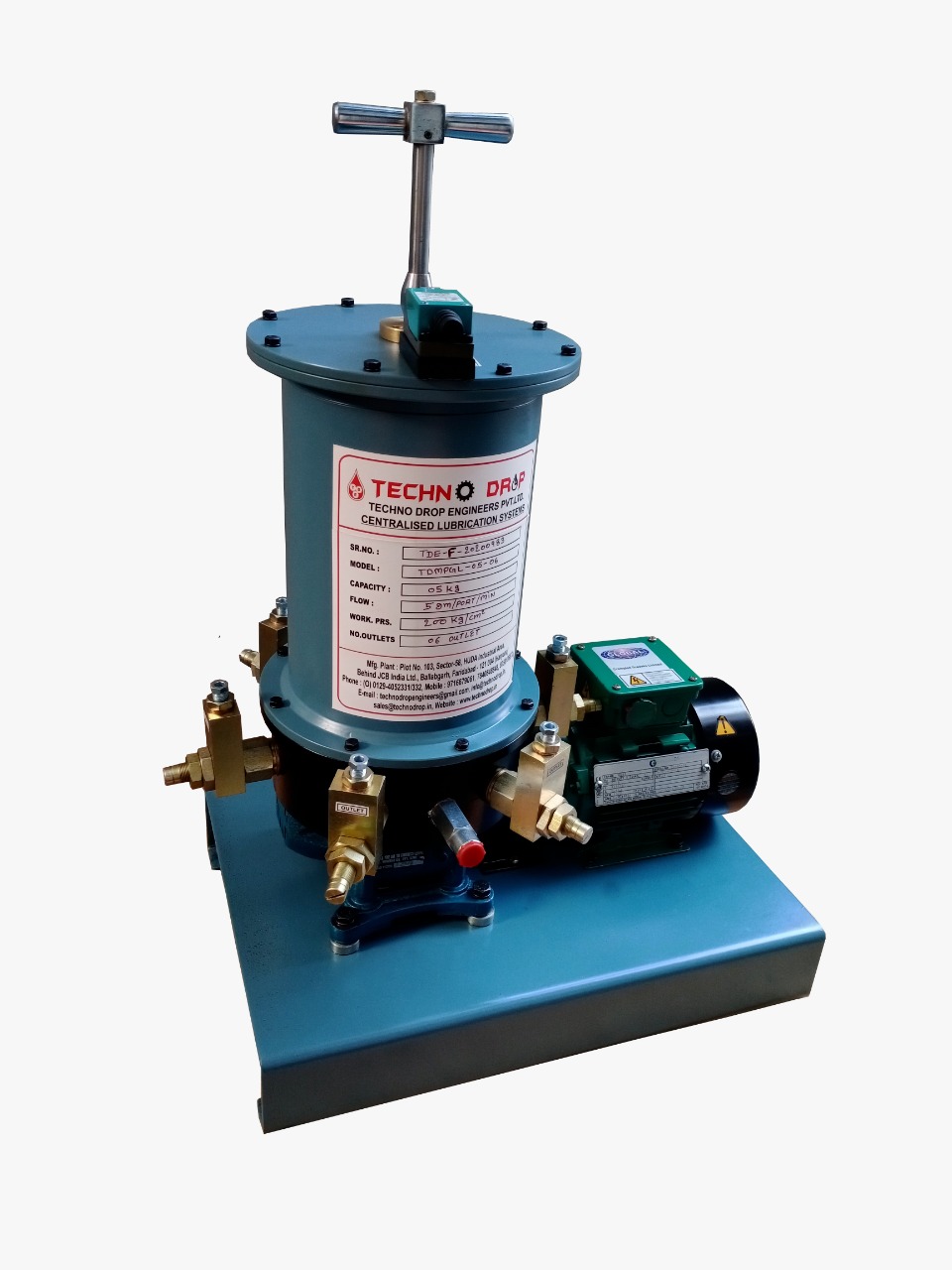

Multiline Radial Lubricators(Grease / Oil)
Model-TDMPGL-05-04
Reservoir Cap. - 5 ltr., Number of Outlets of Plunger Pump-04 Nos. Maximum Pr. 250 Bar; Motor 0.25 HP/ 1.8 kw, 3 Phase, 415V, AC, 1440 RPM, Foot Mounting, Output max. 0.05 to 0.25 cc per stroke (adjustable) at each outlet independently, with Gear Box type Vertical ,Ratio : 60:1
Model-TDMPGL-10-08
Reservoir Cap. - 10 ltr., Number of Outlets of Plunger Pump-06 Nos. Maximum Pr. 250 Bar; Motor 0.25 HP/0.18 kw ,3 Phase, 415V, AC, 1440 RPM, Foot Mounting, Output max. 0.05 to 0.25 cc per stroke (adjustable) at each outlet independently, with Gear Box type Vertical ,Ratio : 60:1
Model-TDMPGL-15-08
Reservoir Cap. - 15 ltr., Number of Outlets of Plunger Pump-08 Nos. Maximum Pr. 250 Bar; Motor 0.50 HP/0.36 kw, 3 Phase, 415V, AC, 1440 RPM, Foot Mounting, Output max. 0.05 to 0.25 cc per stroke (adjustable) at each outlet independently, with Gear Box type Vertical ,Ratio : 60:1 / 70:1 / 50:1 ,Special Double Reduction Gear boxes are used on Special Customize Requirements
Pneumatic Grease Pump (Air Operated Greasing System)
Model
TDPNGP-1500-04 (1.5Kg)
Reservoir Cap : 1500 cc,
Discharge -0 TO 4 CC Per Stroke
Dose-Adjustable
max. Pressure - 150 kg / Cm²
Reservoir imported Acrylic (Transparent)
Outlet port Size - 1 / 4" BSP
Model
TDPNGP-3000-06 (3Kg)
Reservoir Cap : 3000 cc,
Discharge -0 TO 6 CC Per Stroke
Dose-Adjustable
max. Pressure - 150 kg / Cm²
Reservoir imported Acrylic (Transparent)
Outlet port Size - 1 / 4" BSP
Model
TDPNGP-5000-10 (5Kg)
Reservoir Cap : 5000 cc,
Discharge -0 TO 10 CC Per Stroke
Dose-Adjustable
max. Pressure - 150 kg / Cm²
Reservoir imported Acrylic (Transparent)
Outlet port Size - 1 / 4" BSP
Manual Grease Pump (Hand Operated Grease Pump)
Model-TDMGP-500-2
Reservoir Cap - 500 cc,
Discharge - 2CC per stroke
Maximum Pressure - 100 kg/Cm²
Model TDMGP-1000-03
Reservoir Cap - 1000 cc (1Kg),
Discharge - 3cc per stroke
Maximum Pressure - 100 kg/Cm²
Model-TDMGP-1500-04
Reservoir Cap - 1500 cc (1.5Kg),
Discharge - 6cc per stroke
Maximum Pressure - 100 kg/Cm²
Plunger Pumping Element & Grease Filter for Multiline Lubricators
Model-TDPE-07
Piston Dia & Spool Size-7mm
Plungr Type- Spring Type
Discharge-0.05 to 0.25 CC/Stroke (Adj)
Maximum Pressure - 300 kg/Cm²
Port Outlet Size - 1/4" BSP (female / Male)
Connection size- M22x1.5 & M20x1.5 Both Available
Model-TDPE-10
Piston Dia & Spool Size-10mm
Plungr Type- Spring Type
Discharge-0.35 CC/Stroke (Non-Adj)
Maximum Pressure - 300 kg/Cm²
Port Outlet Size - 1/4" BSP (female / Male)
Connection size- M22x1.5 & M20x1.5 Both Available
Model-TDPE-16 (for Dual Line Pumps)
Piston Dia & Spool Size-16mm
Plungr Type- Spring Type
Discharge-1.75 CC/Stroke (Non-Adj)
Maximum Pressure - 300 kg/Cm²
Port Outlet Size - 1/4" BSP (female / Male)
Connection size-1 Inch

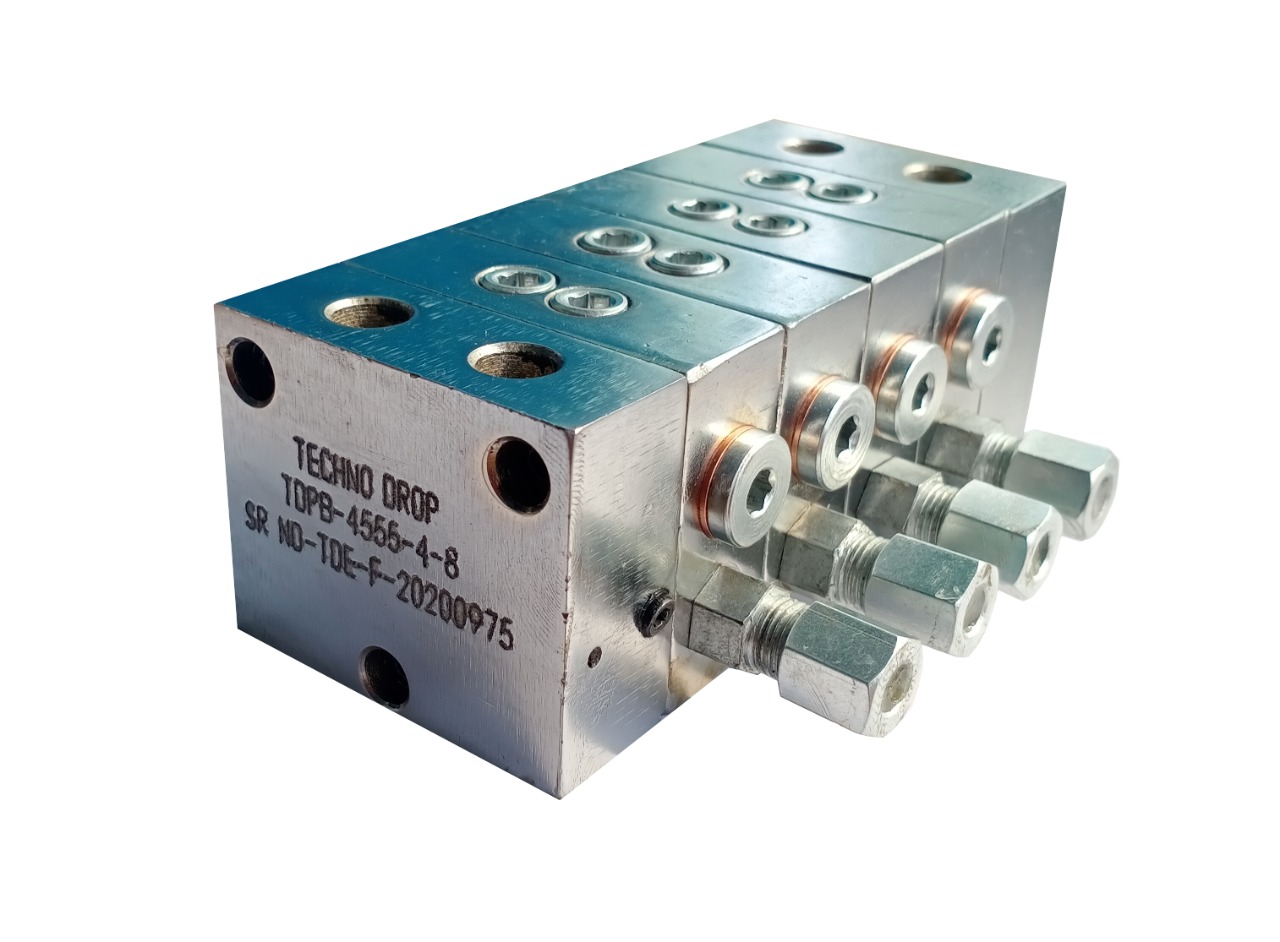

Progressive Block (Grease/Oil)
Model-TDPB-4555 Series
Progressive Block
Stack Size(LxBxH) :45x55x20
Metering Block Type : Progressive
Discharge :0.15CC/Stroke
Maximum Working Pressure : 300 kg/Cm²
Maximum No. of Outlets :22 Nos.
Connection size: 1/8" BSP(f)
Indiaction Pin : Yes Available
Proximity Sensor : Available on demand
Model-TDPB-6080 Series
Master Block
Stack Size(LxBxH) :60x80x25
Metering Block Type : Master
Discharge :0.30 CC/Stroke
Maximum Working Pressure : 300 kg/Cm²
Maximum No. of Outlets :16 Nos.
Connection size: 1/4" BSP(f)
Indiaction Pin : Yes Available
Proximity Sensor : Available on demand
Model-TDPB-3060 Series
Progressive Block
Block Size :30x60
Metering Block Type :Modular type Progressive(SSV)
Discharge :0.15CC/Stroke
Maximum Working Pressure : 300 kg/Cm²
Maximum No. of Outlets :22 Nos.
Connection size: 1/8" BSP(f)
Indiaction Pin : Yes Available
Proximity Sensor : Available on demand
Progressive Block (Grease/Oil)
TDMGF series
Grease feeders are used to provide single point controlled lubrication for all types of bearing housings thereby eliminating difficulties arising due to over or under greasing
Working on a spring compression mechanism, the design regulates grease discharge in proportion to changing spring pressure, thus maintaining constant discharge pressure of 1 to 2 psi
Assembled with medium duty spring, the light & heavy duty springs
TDMGF – 120 :Reservoir Capacity : 120 gms.
TDMGF – 250 :Reservoir Capacity : 250 gms.
TDMGF – 500 :Reservoir Capacity : 500 gms.
TDMGF – 1000:Reservoir Capacity :1000 gms.
